H225-280

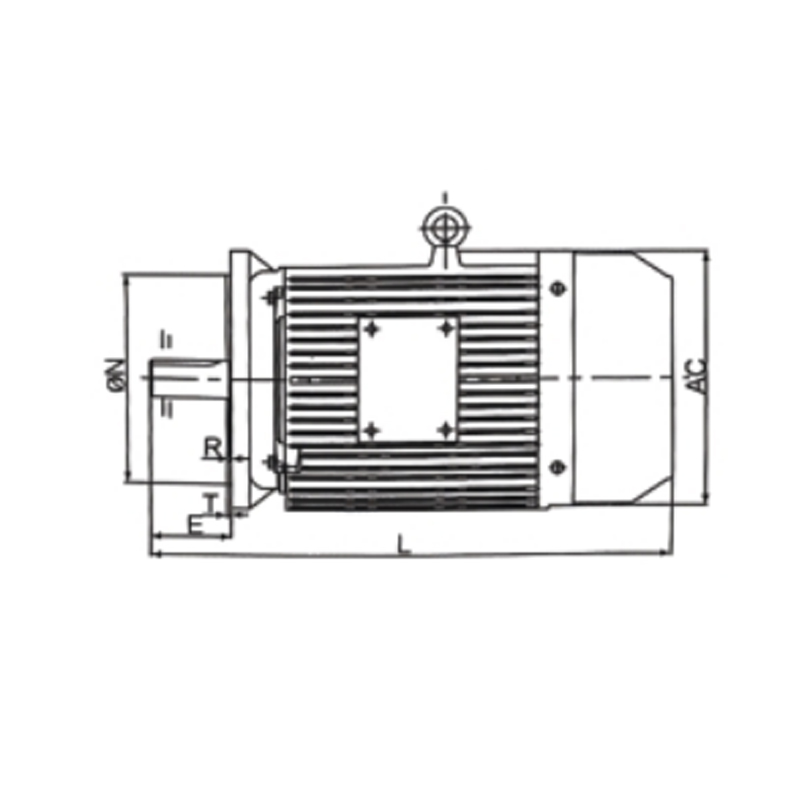

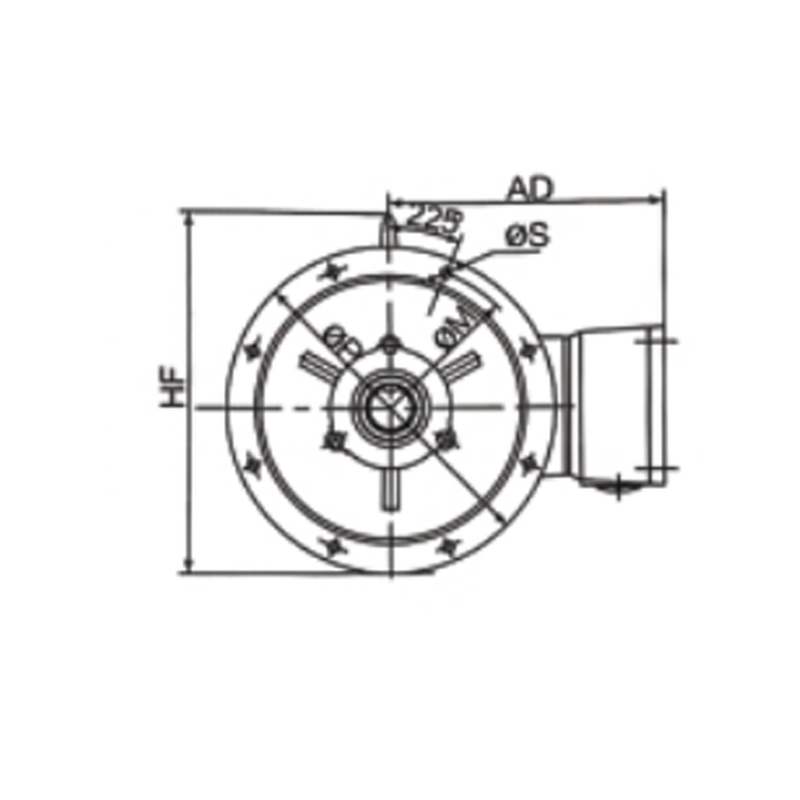

臥式安裝、機座不帶底腳、端蓋有凸緣(通孔)的電動機(B5)Frame without foot,end shield with flange(B5)

如需更多信息,請發送電子郵件或撥打我們的熱線電話

jiawofanny@outlook.com

產品描述

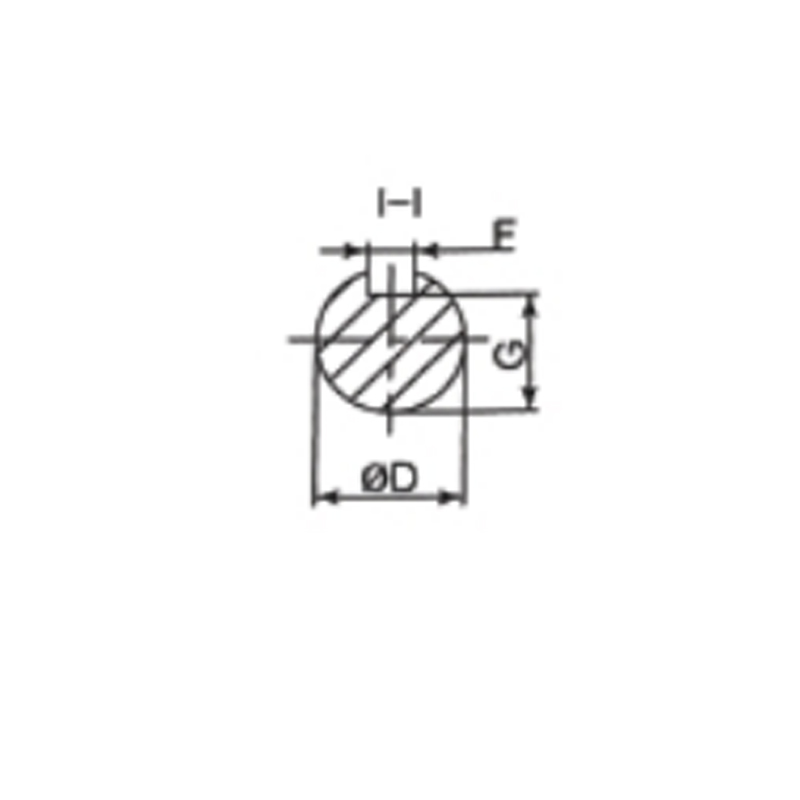

機座號Frame極數 Ploes安裝尺寸Mounting dimension(mm)外形尺寸Overall dimensions(mm)
DEFGMNPRST孔數ACADHDL
Holes
80M2.41940615.51651302000123.54175145305
90S2.4.62450820165130200123.54205170395
90L2.4.62450820165130200123.54205170425
100L2.4.6.8286082421518025014.544215180245435
112M2.4.6.8286082421518025014.544255200275475
132S2.4.6.83880103326523030014.544310230335535
132M4.6.83880103326523030014.5544310230335550
160M2.4.6.842110123730025035018.554340260390730
160L2.4.6.842110123730025035018.554340260390760
180M2.4481101442.530025035018.554390285435805
180L4.6.8481101442.530025035018.554390285435835
200L2.4.6.855110164935030040018.554445320495890
225S4.860140185340035045018.558495350550865
225M255110164940035045018.558550350550865
4.6.860140185340035045018.558550350550895
250M260140185350045055018.558630390615995
4.6.865140185850045055018.558630390615995
280S265140185850045055018.5586304356751030
4.6.8751402067.550045055018.5586304356751030
280M265140185850045055018.5586304356751080
4.6.8751402067.550045055018.5586304356751080
