H225-355

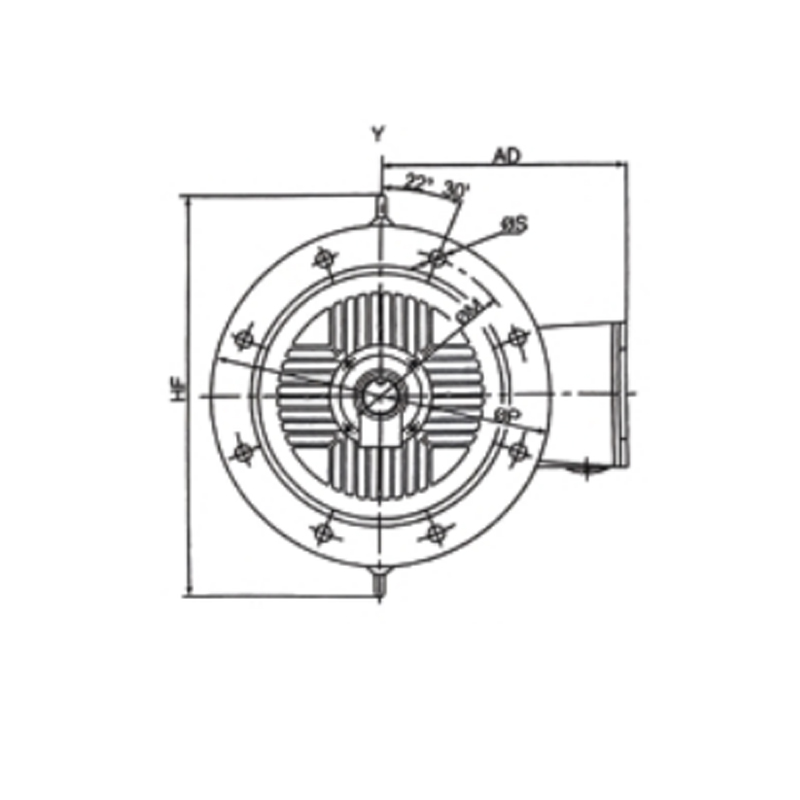

立式安裝、機座不帶底腳、端蓋有凸緣(通孔)的電動機VI)Frame without foot,end shield with flange(VI)

如需更多信息,請發送電子郵件或撥打我們的熱線電話

jiawofanny@outlook.com

產品描述

機座號Frame極數 Ploes安裝尺寸Mounting dimension(mm)外形尺寸Overall dimensions(mm)
DEFGMNPRST孔數ACADHDL
Holes
180M2.4.6.8481101442.5300250350018.554390285505825
180L2.4.6.8481101442.530025035018.554390285505845
200L2.4.6.855110164935030040018.554445320565940
225S4.860140185340035045018.558495350625945
225M255110164940035045018.558495350625945
4.6.860140185340035045018.558495350625975
250M260140185350045055018.5585503906701095
4.6.865140185850045055018.5585503906701095
280S265140185850045055018.5586304357451155
4.6.8751402067.550045055018.5586304357451155
280M265140185850045055018.5586304357451195
4.6.8751402067.550045055019586304357451195
315S265140185860055066024686455309001280
4.6.880170227160055066024686455309001400
315M265140185860055066024686455309001310
4.6.880170227160055066024686455309001430
315L265140185860055066024686455309001310
4.6.880170227160055066024686455309001430
355M2751402067.5740680800246871065510101640
4.6.8951702586740680800246871065510101670
355L2751402067.5740680800246871065510101640
4.6.8951702586740680800246871065510101670
3551
3552
3553
2801702271840780900246890076012201920
4.6.811021028100840780900246890076012201970
